Chapter 10: DNA Structure and Replication

DNA

DNA Overview

DNA is a macromolecule that stores genetic information.

In eukaryotes, DNA is in the nucleus.
Prokaryotes lack a nucleus. Their DNA is in the nucleoid region of the cytoplasm.

Nucleic Acids

Nucleic Acids:

DNA and RNA are nucleic acids.
Nucleic acids are polymers, composed of nucleotide monomers.

Nucleotide:

Nucleotides have three components:
- Pentose sugar monosaccharide
  - Deoxyribose in DNA (deoxyribonucleic acid)
  - Ribose in RNA (ribonucleic acid)
    - Ribose has a hydroxyl on carbon 2’; deoxytibose has a hydrogen
- Phosphate group
- Nitrogenous base

Nucleotide Types:

There are four types of DNA nucleotides and four types of RNA nucleotides.
Among the four DNA nucleotides, all share the same phosphate group and pentose sugar, but differ in the nitrogenous base. Similarily, the four RNA nucleotides have the same phosphate grop and pentose sugar but different nitrogenous bases.
DNA and RNA share three of their four bases, and differ in the fourth.
Both have:
- A (Adenine)
- C (Cytosine)
- G (Guanine)
DNA has:
- T (Thymine)
RNA has:
- U (Uracil)

Polymerization

Polynucleotide: Polymer chain of multiple nucleotides

To form DNA and RNA polymers, the phosphate of one nucleotide bonds with the sugar of the next in a phosphodiester bond
The sugars and phosphates form the polynucleotide backbone. The nitrogenous bases extend from the backbone.
The specific sequence of nitrogenous bases is what stores the DNA and RNAs’ information.

Polymerization Directionality:

Phosphate groups attach to the 5’ carbon of the first nucleotide’s sugar and the 3’ carbon of the next.
The first nucleotide in the chain has a phosphate attached to its 5’ carbon but not to its 3’ carbon. This is called the “5’ end”.
The last nucleotide in the chain has a phosphate attached to its 3’ carbon but not to its 5’ carbon. This is called the “3’ end”.
Polynucleotides are only polymerized in one direction - from the 5’ end to the 3’ end, each time linking a new sugar’s 3’ carbon to the previous sugar’s 5’ carbon.

Structure

Polynucleotide:

The polynucleotide backbone twists into a helix-like structure due to various chemical reasonings

DNA:

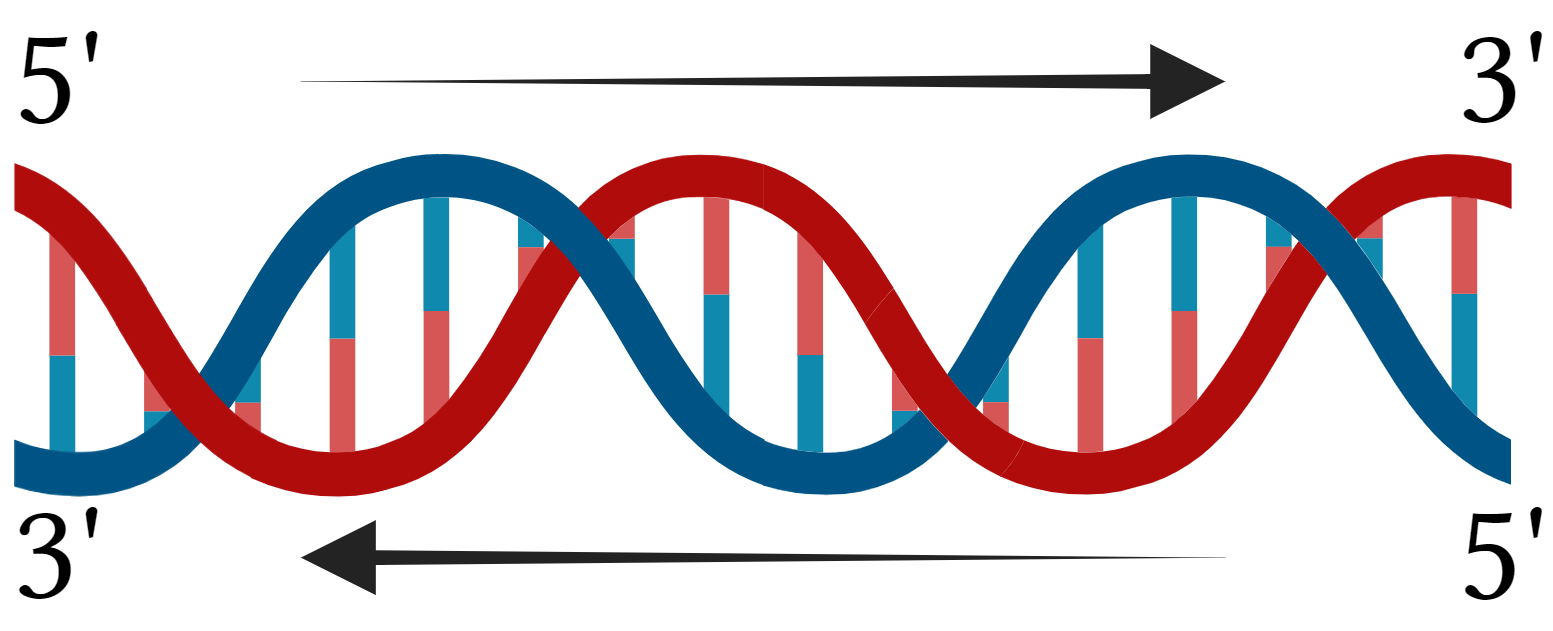

DNA has a second polynucleotide chain which runs parallel to the first in the opposite direction; it has an opposite 5’ and 3’ end
The nitrogenous bases of the two chains form hydrogen bonds with each other, creating a double-helix structure
Each nucleotide type will only bond with a specific opposing nucleotide type; the parallel strands must be perfectly oppositely matched
- A and T bond
- C and G bond

Chromosome

Eukaryotic Chromosome Organization:

The DNA polynucleotide chain wraps around histone proteins.
- Each DNA-histone loop is a nucleosome
Nucleosomes coil into chromatin fiber
During interphase, the chromatin is loose and messy, and individual chromosomes are not visible. By prophase, the chromatin condenses to defined, visible chromosome structures.

DNA Replication

Overview

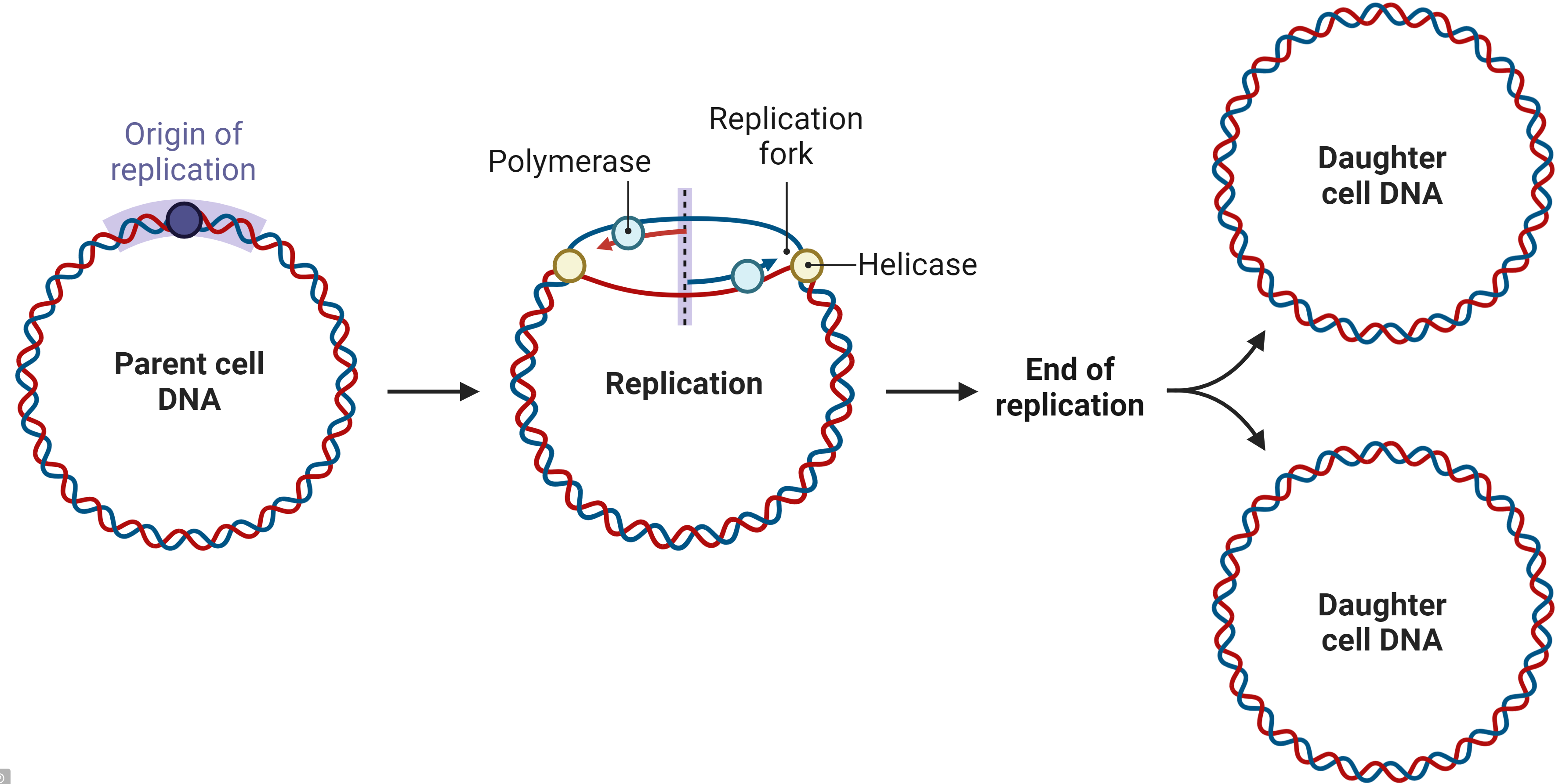

DNA Replication:

Prior to cell division, the DNA is replicated
- In Eukaryotes, this happens in the ‘S’ phase of the cell cycle interphase
- In prokaryotes, this happens prior to binary fission

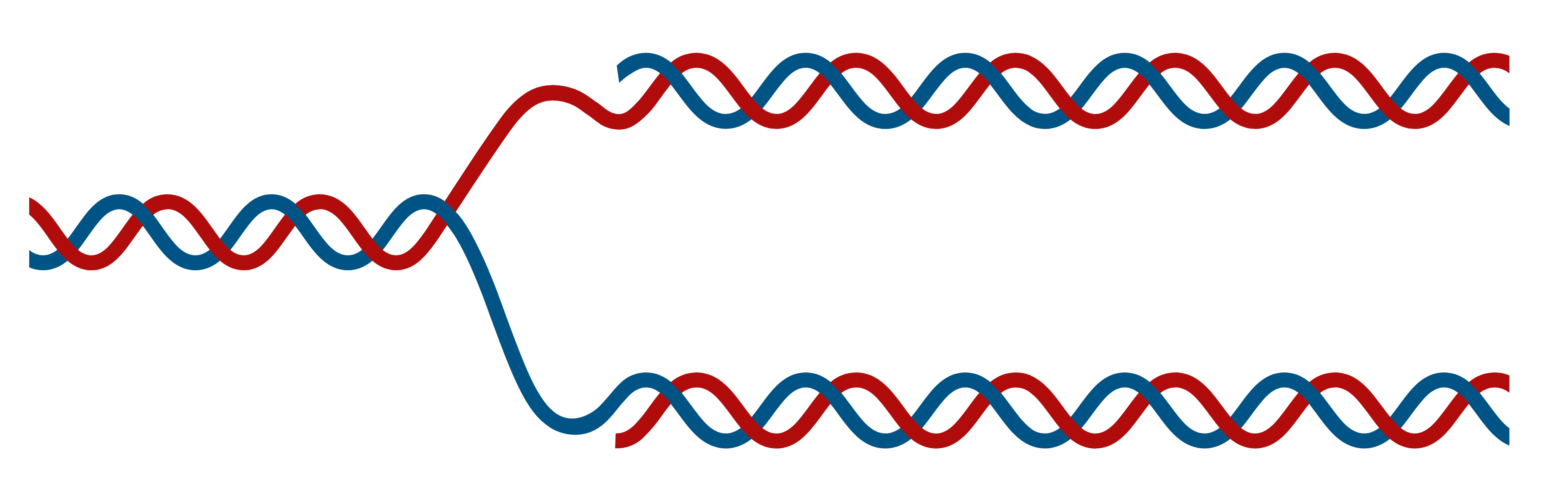

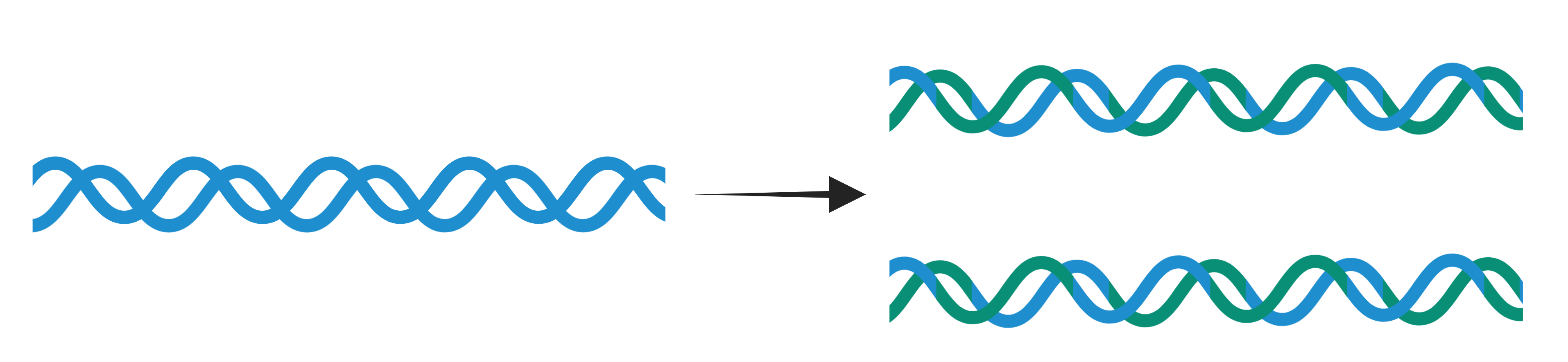

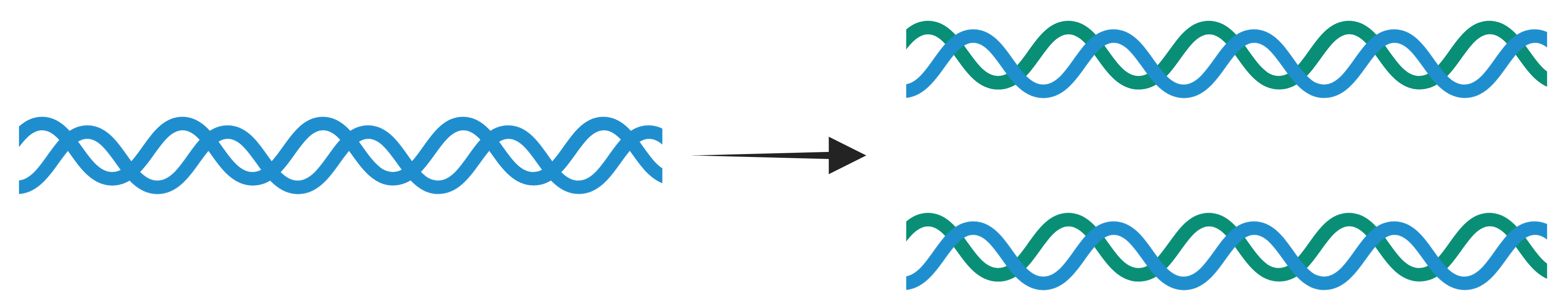

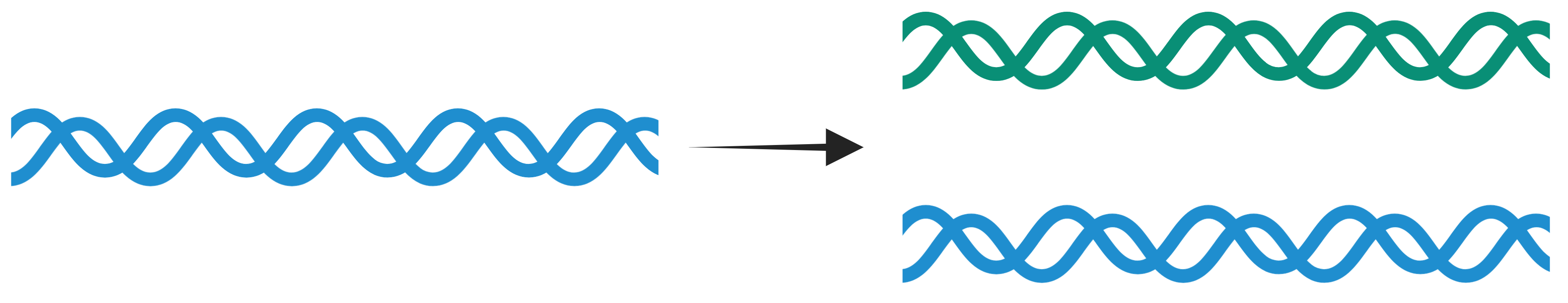

Semiconservative Model:

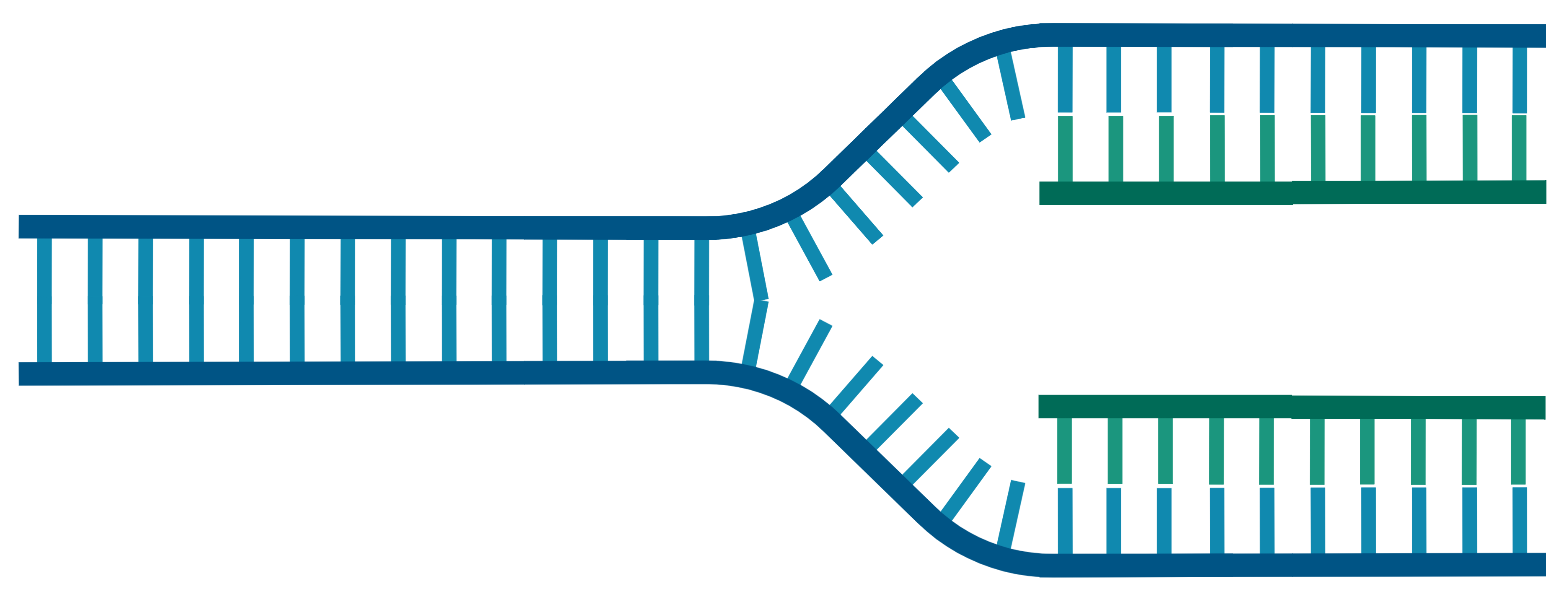

Each new molecule of DNA contains one strand from the original molecule, and one new strand.
The two original DNA strands are unwound and unattached. Each strand then serves as a template for a new strand, which is composed of bases that pair with the original strand.

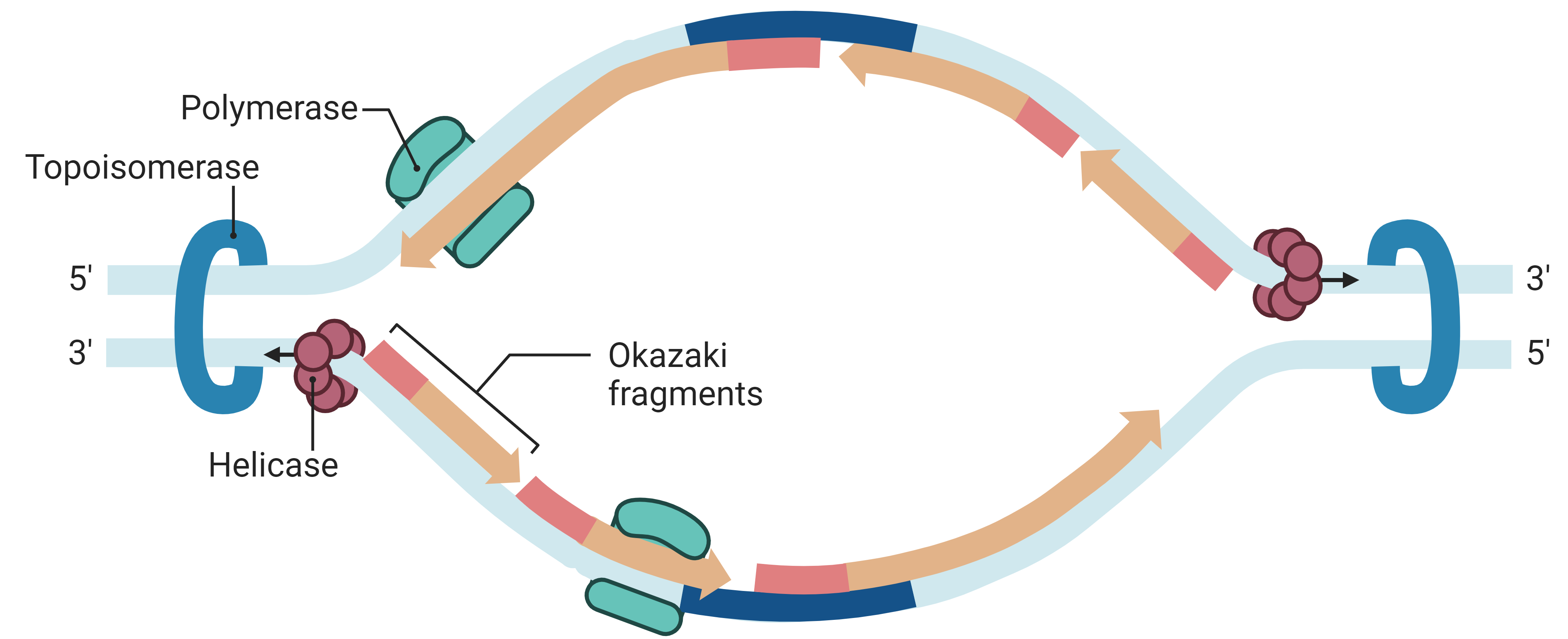

DNA Replication Enzymes

DNA Helicase:

Unwinds the DNA double helix and separates the two strands

Topoisomerase:

Helps the DNA unwind by releasing tension by creating temporary gaps

DNA Polymerase:

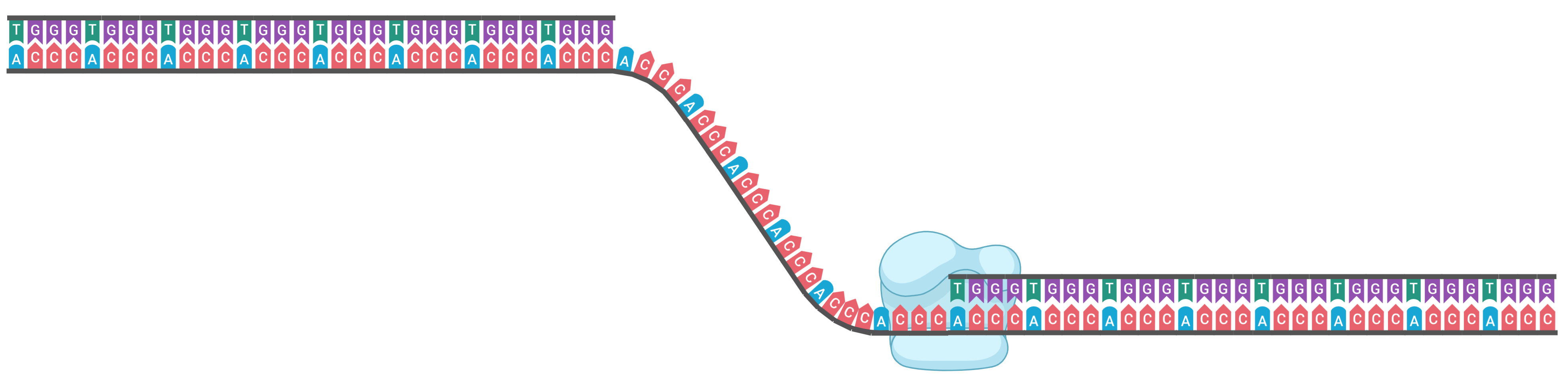

Synthesizes the new DNA strand by adding nucleotides based on base pairing with the original strand
Cannot initiate a new DNA strand; requires an RNA primer, to which it can add nucleotides.
Unidirectional; only adds on to the 3’ end - attaches a new nucleotide’s 5’ end to the previous nucleotide’s 3’ end
Also proofreads and error-corrects

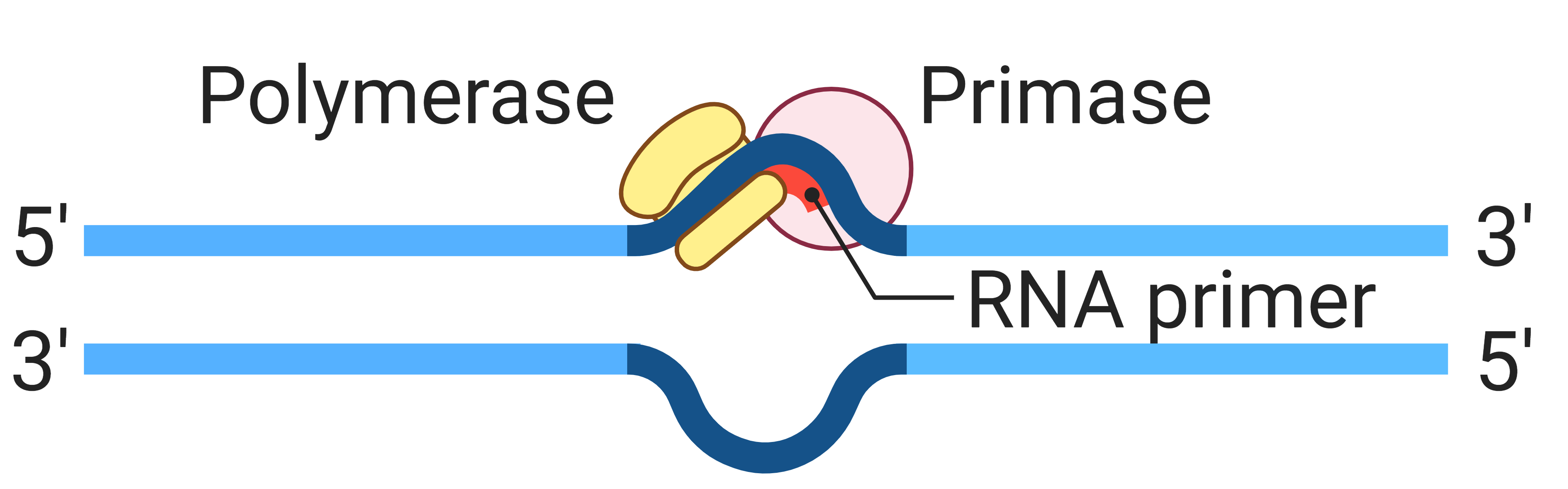

Primase:

Places the RNA primer

Ligase:

Joins Okazaki fragments

Okazaki Fragments

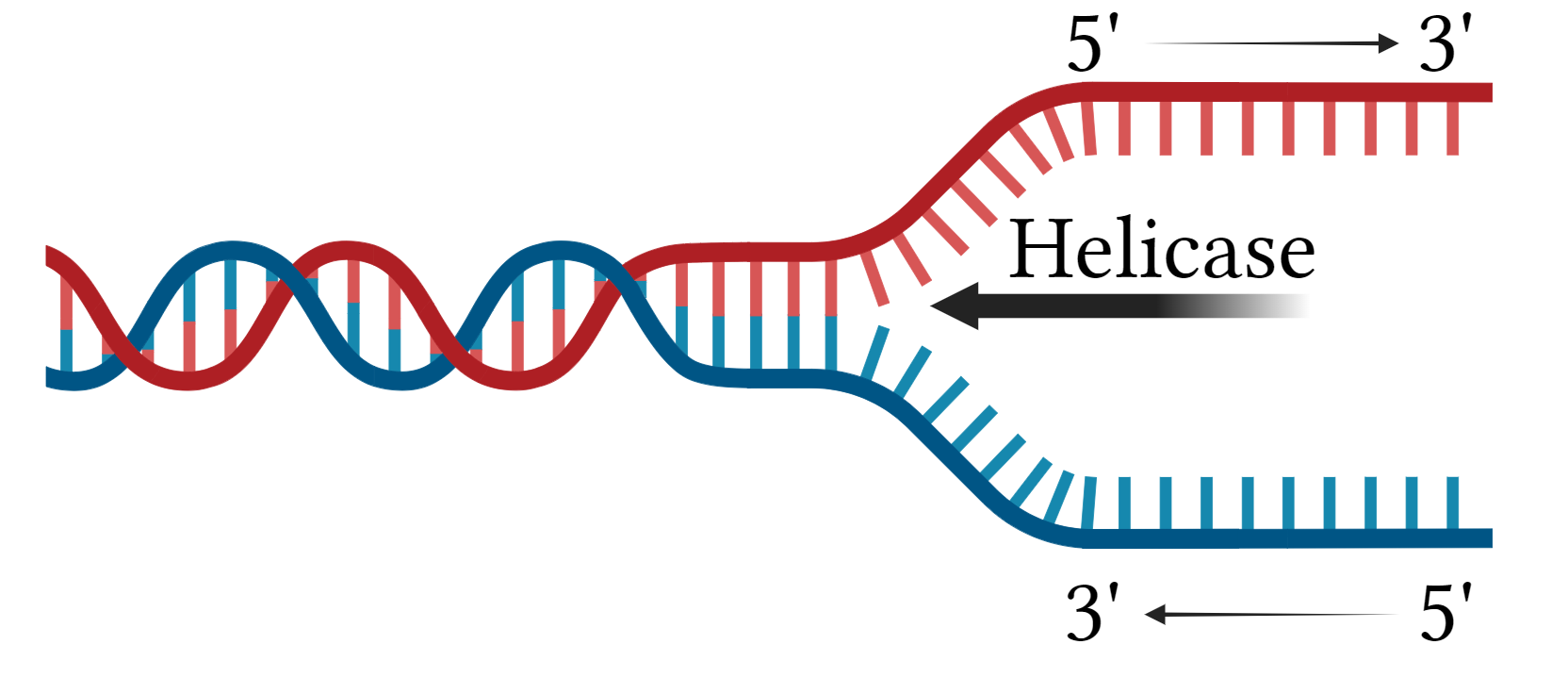

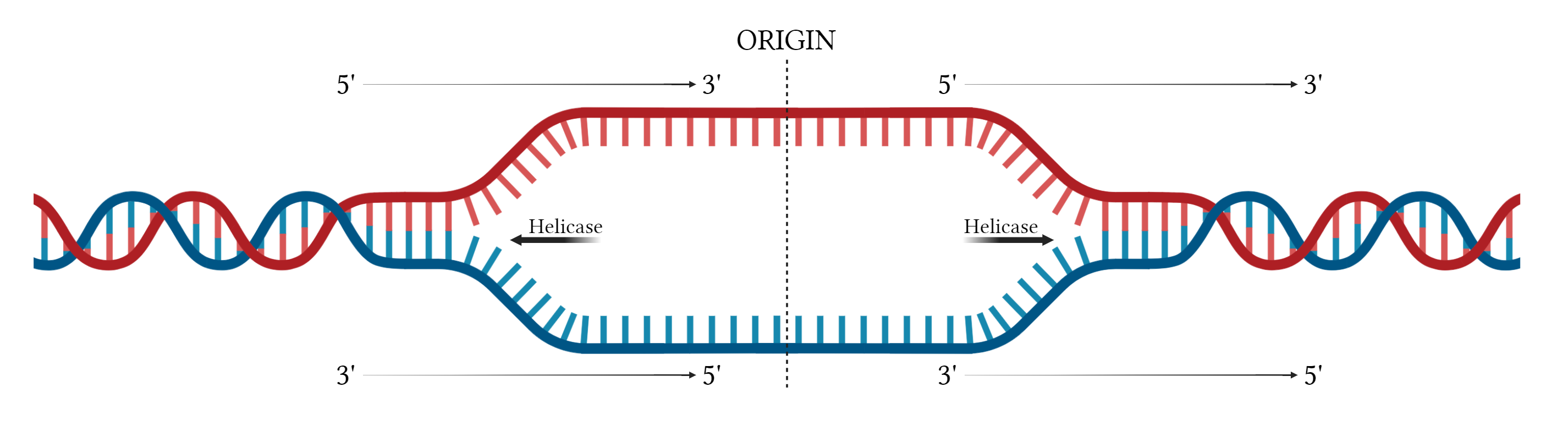

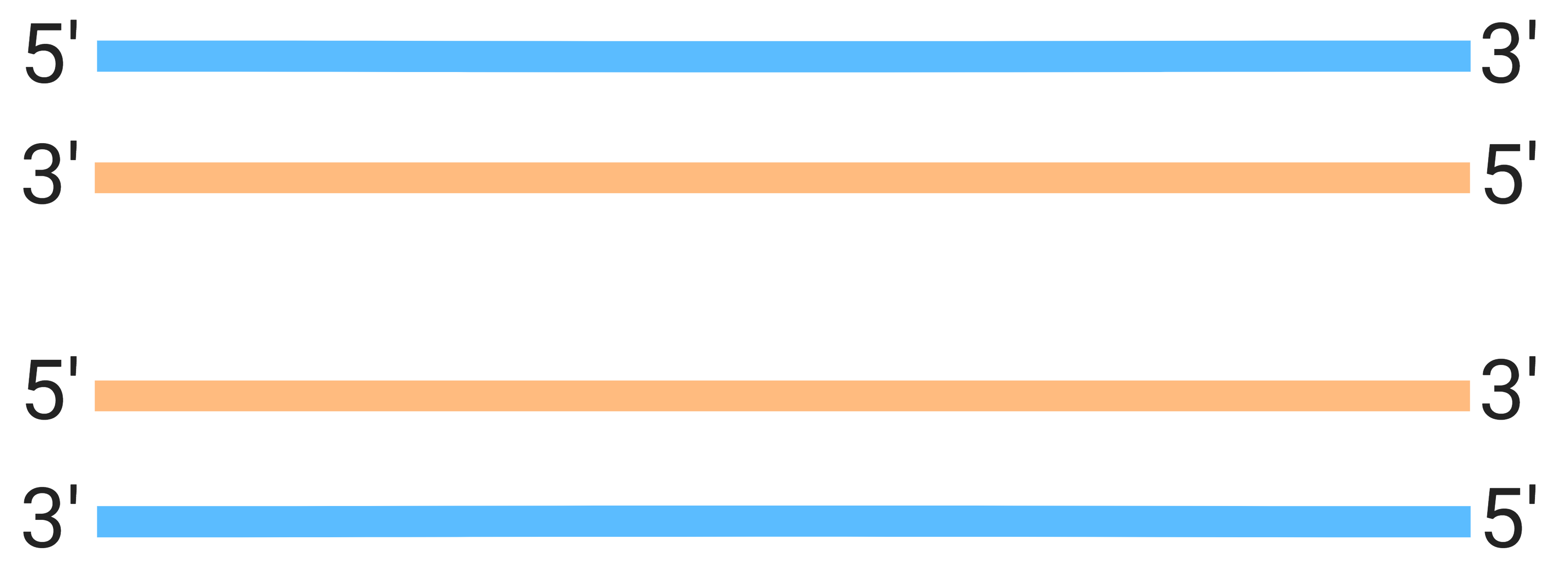

The two strands of DNA run in opposite directions:

When the helicase unzips the two strands, one is exposed from its 5’ end to its 3’ end, running in the direction of the helicase movement, while the other is exposed from its 3’ end to its 5’ end, running in the opposite direction of the helicase movement.
The new strand of DNA will run in the opposite direction its paired original strand.

The new strand paired with the original strand running in the direction of the helicase movement will run in the opposite direction of the helicase movement; the new strand paired with the original strand running in the opposite direction of the helicase movement will run in the direction of the helicase movement.

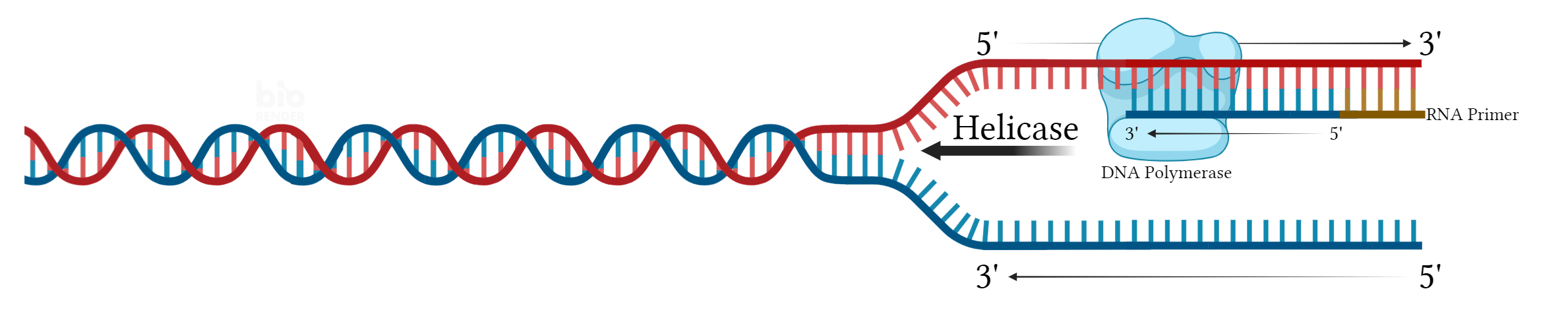

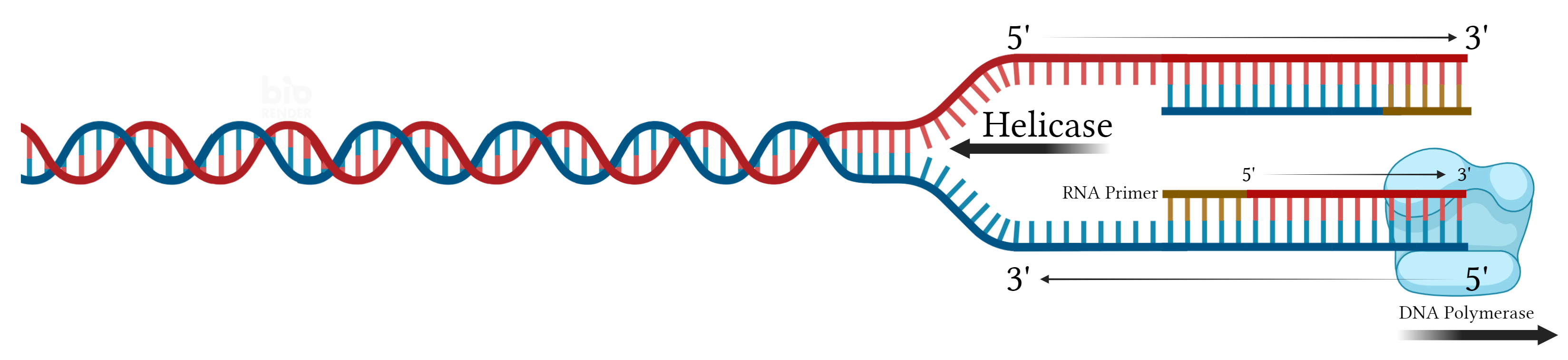

The new strand which runs in the direction of the helicase movement can immediately begin synthesis as soon as its paired strand is exposed.

It can be continuously synthesized, in the direction of the helicase movement, with a single initial primer.

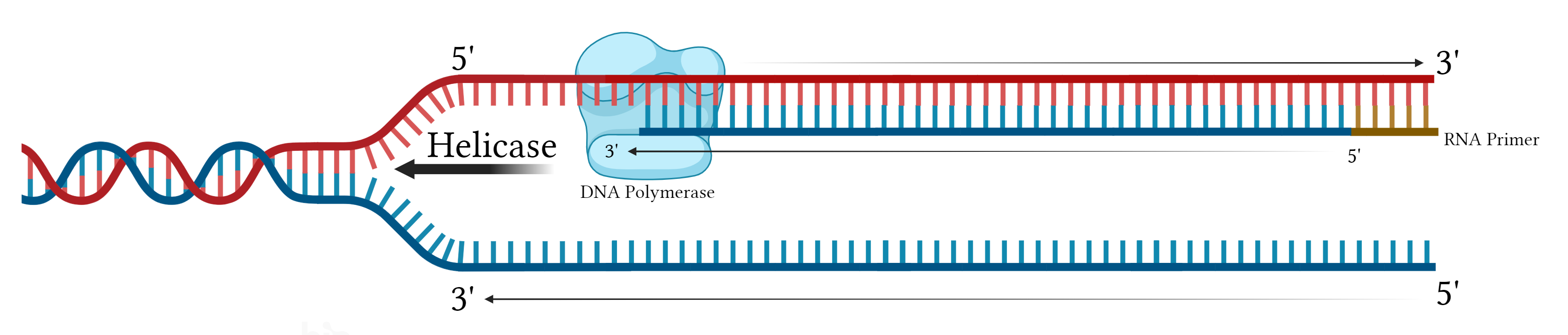

However, the strand running in the opposite direction of the helicase movement cannot immediately begin synthesis.

Instead, it waits until an adequate segment of the original strand is revealed. It then places a primer and is synthesized in the opposite direction of the helicase movement, towards the origin of its paired exposed strand.

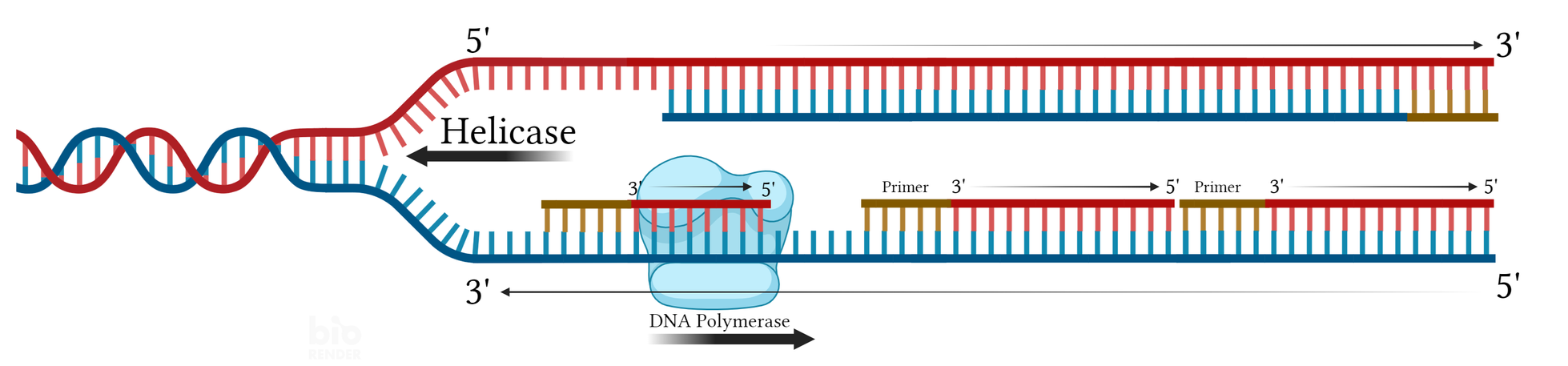

To continue synthesis further down in the direction of the helicase movement, a new primer must be placed once an additional adequate segment of original DNA is exposed, from which the new strand can be synthesized in the opposite direction of the helicase movement, towards the previously placed primer.

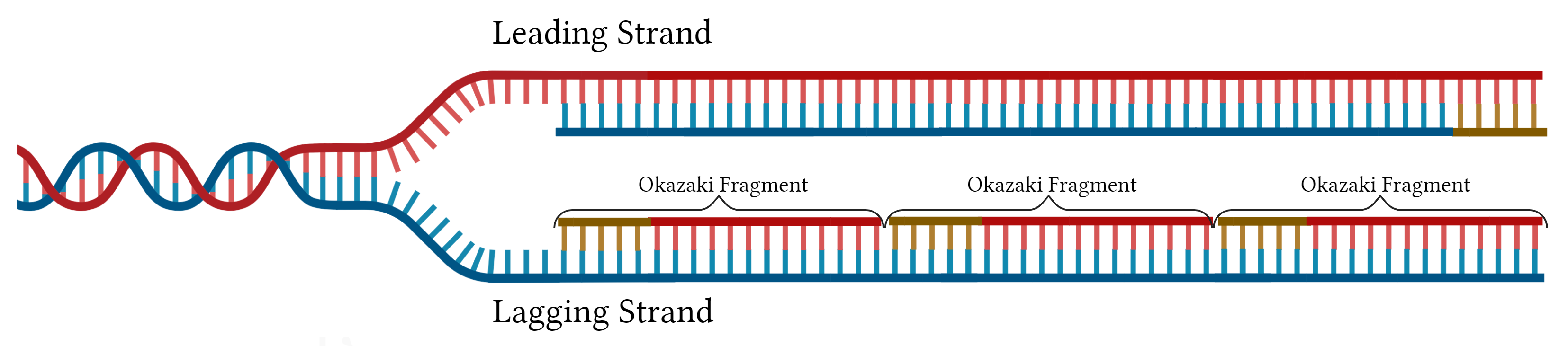

This results in multiple fragments of new DNA, called Okazaki fragments.

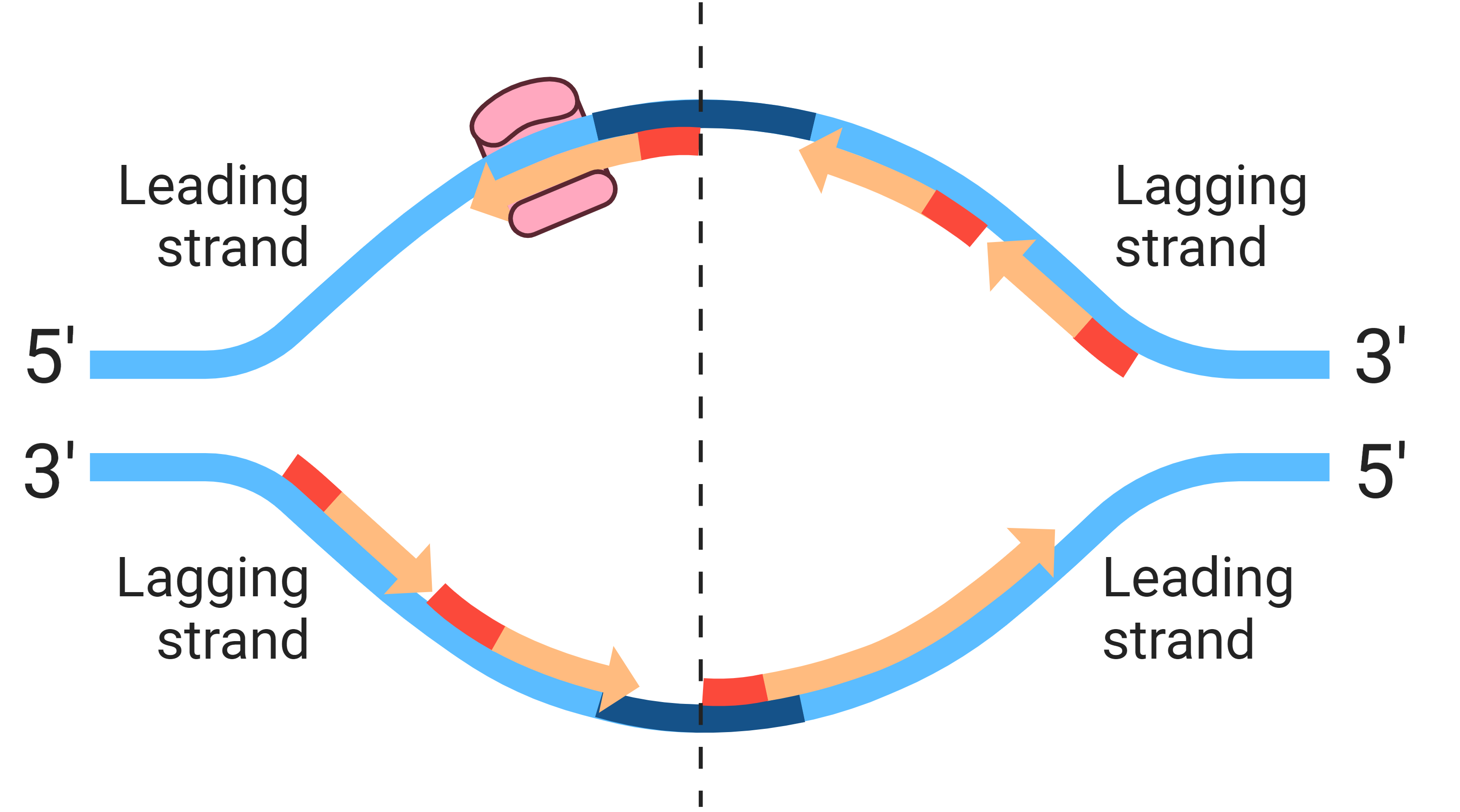

The continuously synthesized strand, which runs in the direction of the helicase movement, is the leading strand.

The discontinuously synthesized strand, which runs in the opposite direction of the helicase movement, is the lagging strand.

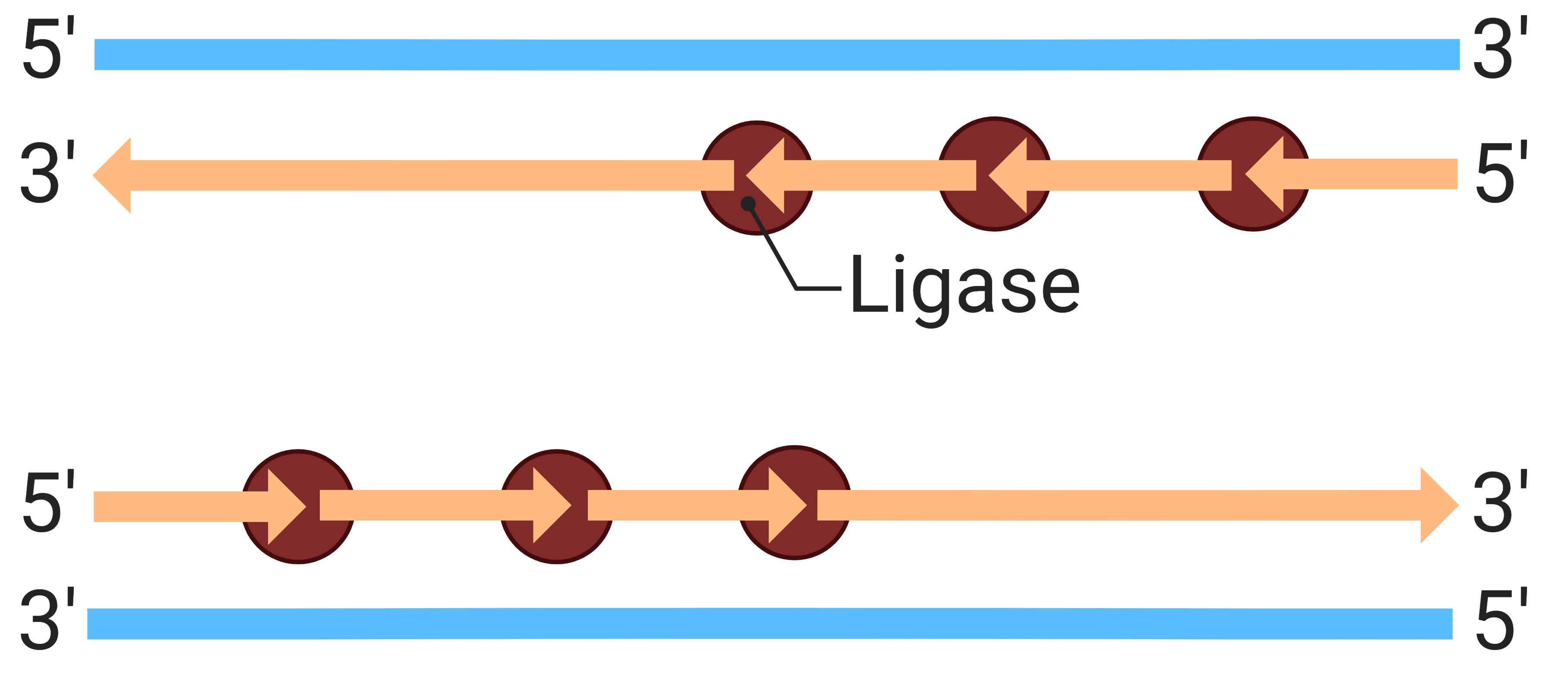

Eventually, the RNA primers are removed and replaced with DNA nucleotides. Ligase then joins the fragments by catalyzing phosphodiester linkages between the terminals, creating a single continuous strand.
